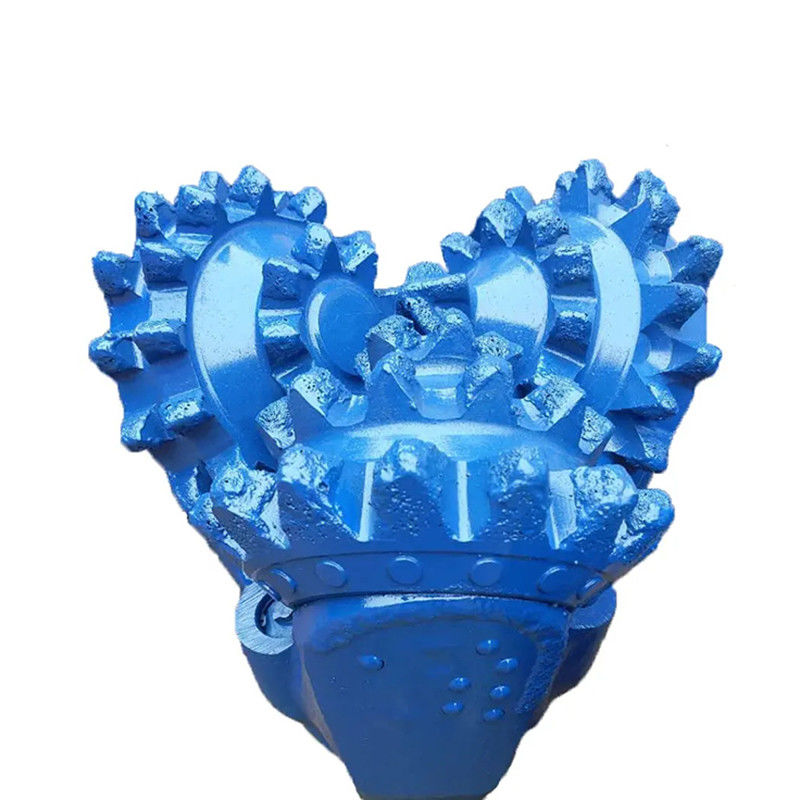

High Elasticity Blue Steel Tooth Tricone Bit IADC 115 Oil Well Drill Head
  • High Elasticity Blue   Steel Tooth Tricone Bit IADC 115  Oil Well Drill Head
  • High Elasticity Blue   Steel Tooth Tricone Bit IADC 115  Oil Well Drill Head

High Elasticity Blue Steel Tooth Tricone Bit IADC 115 Oil Well Drill Head

Place of Origin HeBei . China
Certification ISO9001
Product Details
Name:
Roller Cone Bit
Usage:
Well Drilling
Applicable Industries:
Construction Engineering, Energy And Mining
Type:
Bit
Material Science:
Carbon Steel, High Manganese Steel, Hard Alloy
Advantages:
High Efficiency
Machine Type:
Drilling Tools, Drilling Tools, Drilling Equipment
Processing Type:
Forging
Application:
Oil Field, Water Well, Geothermal
Bearing Type:
Open/sealed Bearing, Rubber/metel Seal Bearing
High Light:

High Elasticity Steel Tooth Tricone Bit

,

IADC 115 Oil Well Drill Head

,

Blue Steel Tooth Tricone Bit

Payment & Shipping Terms
Price
According to product specifications
Packaging Details
According to customer needs
Delivery Time
5-15work days
Payment Terms
T/T
Product Description

Steel Tooth Rock Roller Bit/Mill Tricone Bit/Oil Well Drill Bit




Introduction



Adopting high-precision radial sliding axial thrust bearings with steel ball locking. The tooth claw shaft neck is welded with wear-resistant alloy, and the inner hole of the tooth wheel is welded with special alloy and silver plated to enhance the wear resistance of the bearing pair



Suitable Formation
IADC CODE
Rock Formation
WOB KN/mm
PRM(r/min)
115
Extremely soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk.
0.3~0.75
180~60
117
Extremely soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk.
0.35~0.8
150~80
127
Soft strata with low compressive strength and high drilla-bility, such as mudstone, gypsum, salt rock, soft shale, and soft limestone.
0.35~0.9
150~70
217
Soft to medium strata with low compressivestrength, such as medium soft shale, medium softlimestone, medium soft sandstone, and soft strata with hard intercalation.
0.4~1.0
100~60



Features

1. High strength, high elasticity, high temperature resistance, high wear resistance.

2. High precision metal seal.

3. Lock the balls to adapt to high speed.

4. Using high-strength and high-toughness carbide teeth,





High Elasticity Blue   Steel Tooth Tricone Bit IADC 115  Oil Well Drill Head 0



Used in
Tri-cone bit is a decelerating bit. It is based on the fact that the speed of the cone is less than the speed of the bit. It is suitable for sidetracking of old wells and deepening of small boreholes under high speed and high drilling pressure.



High Elasticity Blue   Steel Tooth Tricone Bit IADC 115  Oil Well Drill Head 1
High Elasticity Blue   Steel Tooth Tricone Bit IADC 115  Oil Well Drill Head 2
High Elasticity Blue   Steel Tooth Tricone Bit IADC 115  Oil Well Drill Head 3
High Elasticity Blue   Steel Tooth Tricone Bit IADC 115  Oil Well Drill Head 4
High Elasticity Blue   Steel Tooth Tricone Bit IADC 115  Oil Well Drill Head 5





FAQ:

1. How to order the products?

A: Please send the inquiry with detail item description or with Model number.



2. How about the common packing?

A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.



3. Can I expect a quality products?

A: Yes. mature production technology ensuring the quality satisfy international request.



4. How to check the product are the exact one you want?

A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.



5. How to control quality?

A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.



6. Fast delivery time:

A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.



7. Competitive price:

A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
