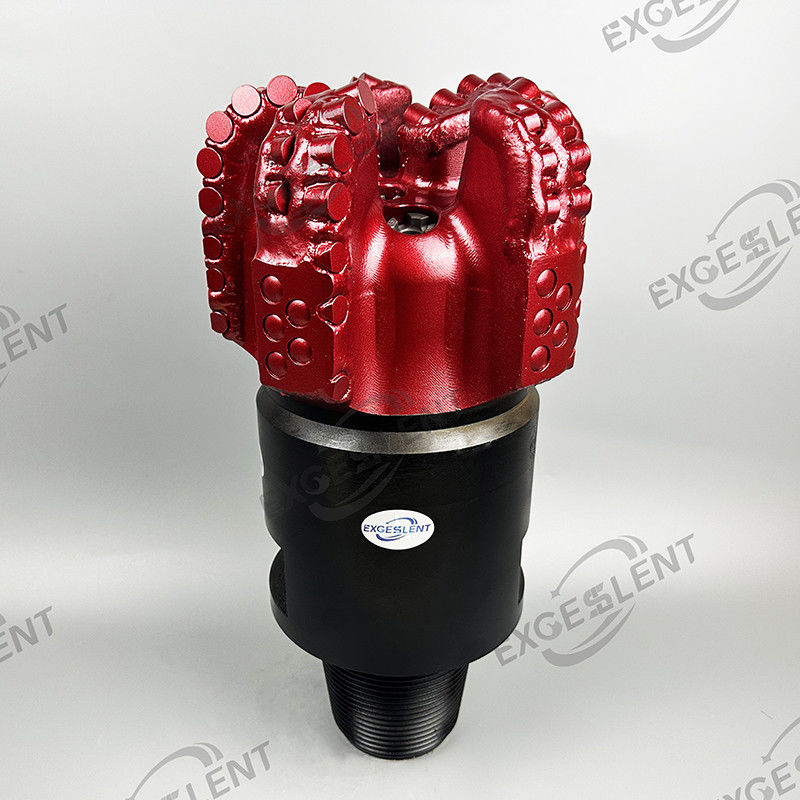

Polycrystalline Diamond Compact Drill Bit Bits for Mining to Oil Engineering
  • Polycrystalline Diamond Compact Drill Bit Bits for Mining to Oil Engineering
  • Polycrystalline Diamond Compact Drill Bit Bits for Mining to Oil Engineering

Polycrystalline Diamond Compact Drill Bit Bits for Mining to Oil Engineering

Place of Origin Hebei,China
Certification ISO9001
Product Details
Application:
Oil And Gas Drilling
Weight:
Standard
Product Name:
PDC Drill Bits
Type:
DRILL BIT
Longevity:
Long
Applicable Industries:
Construction Works , Energy & Mining
Material:
Polycrystalline Diamond Compact
Size:
Customization
Payment & Shipping Terms
Price
Negotiable
Packaging Details
According to customer needs
Delivery Time
15-30 work days
Payment Terms
TT
Product Description

Product Description:

Our PDC Bits are made using a high-quality cemented carbide material, which provides excellent durability and long-lasting performance in even the harshest drilling conditions. And thanks to their forging processing type, these drill bits are able to withstand high temperatures and pressures, ensuring smooth and efficient drilling operations every time.

Polycrystalline Diamond Compacts (PDC) Bit are called diamond drill bits or. This drill bit is an integrated drill bit. The entire drill bit has no moving parts, has a relatively simple structure and is impact resistant.Including Matrix body PDC bit and Steel body PDC bit



Features:

Matrix PDC drill bits: can withstand higher temperatures than steel body PDC drill bits and have stronger erosion resistance. In a large displacement environment, the life of the carcass PDC is longer.
Steel body PDC drill bits :Compared with matrix PDC drill bits, steel body PDC drill bits can withstand high impact loads, are equipped with a larger chip flute area for better chip evacuation, and are less expensive.



Technical Parameters:

IADC code Inch Blade Gage length Nozzle Quantity Weight Rotate Speed Connected Thread Recommended Torque
M121 8 1/2'' 4 2 6 0.10-1.00 500-80 4 1/2 REG 16.3-21.7
M121 12 1/4'' 4 2 2/5 6 0.36-1.60 500-80 6 5/8 REG 38.0-43.4
M221 8 1/2'' 5 3 5 0.10-1.00 260-80 4 1/2 REG 16.3-21.7
M323 8 1/2'' 6 3 3/4 6 0.20-1.50 260-80 4 1/2 REG 16.3-21.7
M432 12 1/4'' 7 2.5 7 0.30-1.50 260-60 6 5/8 REG 38.0-43.4
M433 8 1/2'' 6 3 6 0.20-1.50 260-80 4 1/2 REG 16.3-21.7
S123 8 1/2'' 4 2-3.5 7 0.10-1.00 250-60 4 1/2 REG 16.3-21.7
S223 8 1/2'' 4 2-3.5 6 0.10-1.00 250-60 4 1/2 REG 16.3-21.7
S323 6 1/8'' 5 2-3.5 5 0.10-1.00 300-80 3 1/2 REG 9.5-12.2
S423 8 1/2'' 5 2-3.5 7 0.10-1.00 250-60 4 1/2 REG 16.3-21.7
S432 6'' 6 2-3.5 6 0.10-1.00 300-80 3 1/2 REG 9.5-12.2


Applications:

There are different types of PDC Bits available, including Diamond Impregnated Drill Bits and Steel Body Drill Bits. The Diamond Impregnated Drill Bits are designed with a high diamond content and are ideal for drilling through hard formations such as granite, quartzite and basalt. The Steel Body Drill Bits, on the other hand, are made with a tougher steel body and are suitable for drilling through softer formations such as shale, sandstone and limestone.

This product is ideal for drilling operations that require high drilling speed. The PDC Bits have a high drilling speed due to their polycrystalline diamond compact material, which allows for faster drilling and reduced wear and tear on the bit. Additionally, the product's packaging details can be customized according to the customer's needs, making it a flexible option for a variety of drilling scenarios.









Polycrystalline Diamond Compact Drill Bit Bits for Mining to Oil Engineering 0

Packing and Shipping:

Our PDC Bits are carefully packaged to ensure their safety during shipping. Each bit is wrapped in protective material and placed in a sturdy box to prevent any damage during transportation.

We offer several shipping options to meet your needs. Standard shipping typically takes 5-7 business days, while expedited shipping can deliver your PDC Bits in just 2-3 business days. We also offer international shipping for customers outside of the United States.

Once your order is processed, you will receive a tracking number via email so you can keep an eye on your PDC Bits as they make their way to you.





用于非开挖钻井项目1的HDD钻机凹槽背铰刀
用于非开挖钻井项目2的HDD钻机凹槽背铰刀
用于非开挖钻井项目3的HDD钻机凹槽背铰刀
用于非开挖钻井项目4的HDD钻机凹槽背铰刀
用于非开挖钻井项目5的HDD钻机凹槽背铰刀

FAQ:

Q: What is the place of origin of PDC Bits?
A: PDC Bits are manufactured in Hebei, China.

Q: Is there any certification for PDC Bits?
A: Yes, PDC Bits are certified with ISO9001.

Q: What is the price of PDC Bits?
A: The price of PDC Bits is negotiable.

Q: Can the packaging of PDC Bits be customized?
A: Yes, the packaging details of PDC Bits can be tailored according to customer needs.

Q: How long does it take to deliver PDC Bits?
A: The delivery time for PDC Bits is 15-30 work days.

Q: What are the payment terms for PDC Bits?
A: The payment terms for PDC Bits are TT.
