Tricone Drilling Bit
>
|
| Place of Origin | Hebei,China |

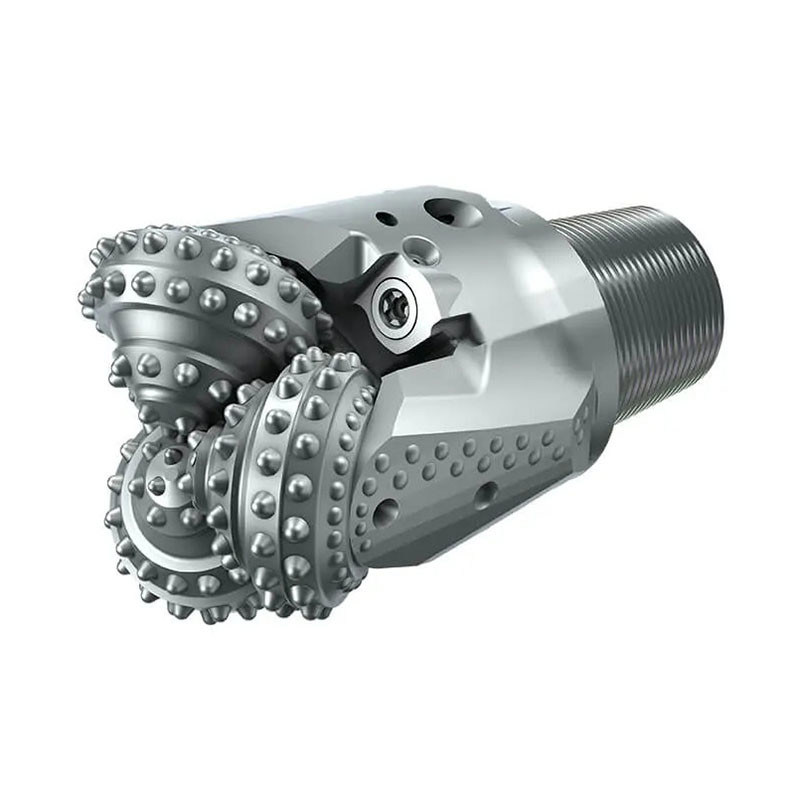

Carbide Tricone Drill Bit with 3 Blades for Drilling
Tricone Drilling Bit is an advanced type of rotary rock bit, which is also referred to as a roller cone bit. It is an effective tool for drilling in challenging rock formations. This tricone rock bit features an API Reg thread type, pin connection, 6mm blade width, 3 blades and cone cutting edge. It is widely used in oil and gas drilling operations for its superior performance in soft to medium hard formations. It is capable of providing superior performance and efficient drilling operations due to its advanced design and construction.
Tricone Drilling Bit is designed for maximum penetration rate and efficient cutting action. It is constructed with a series of hardened teeth which are designed to penetrate the rock and create a smooth, efficient cutting action. The cone cutting edge is designed to provide maximum torque and rotational speed for improved drilling performance. The advanced design and construction of this tricone rock bit make it a reliable and efficient drilling tool for challenging rock formations.
In addition to its superior performance and efficiency, Tricone Drilling Bit is also highly durable and long lasting. Its advanced construction and design ensure that it can withstand the toughest drilling conditions and provide reliable performance over a long period of time. With its superior cutting action and reliable performance, this tricone rock bit is an ideal choice for oil and gas drilling operations.
|
IADC
|
WOB(KN/MM)
|
RPM(r/min)
|
Applicable Formations
|
|
116 117
|
0.35~0.8
|
150~80
|
Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk etc.
|
|
136 137
|
0.35~1.0
|
120~60
|
Soft to mesium soft formations with low compressive strength and high drillability.such as medium soft shale,hard gypsum,medium
soft limestone.medium soft sandstone soft formation with harder nterbeds,ect. |
|
216 217
|
0.4~1.0
|
100~60
|
Medium hard formations with high compressive strength,such as medium soft shale,hard gypsum,medium soft limestone,medium soft
sandstone,soft formation with harder interbeds ect. |
|
246 247
|
0.4~1.0
|
80~50
|
Medium hard formations with high compressive strength,such as abrasive shale.limestone,sandstone,dolomite,hard gypsum,marble,ect.
|
|
417 437
|
0.35~0.9
|
150~70
|
Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk,gypsum,salt,soft shale,soft
limestone,etc. |
| Bit Size | Connection | Making Up Torque | Weight | Bit Size | Connection | Making Up Torque | Weight | ||
| Inch | mm | Inch | KN.m | Kg | Inch | mm | Inch | KN.m | Kg |
| 3 1/2 | 95.3 | 2 3/8 | 4.1~4.7 | 5 | 11 | 279.4 | 6 5/8 | 38~43.4 | 85 |
| 4 5/8 | 117.5 | 2 7/8 | 6.1~7.5 | 6.5 | 11 5/8 | 295.3 | 89 | ||
| 4 3/4 | 120.7 | 7 | 12 1/8 | 304.8 | 94 | ||||
| 5 1/2 | 139 2/3 | 3 1/2 | 9.5~12.2 | 17 | 12 1/4 | 311.2 | 95 | ||
| 5 7/8 | 142.9 | 18 | 12 15/32 | 315.9 | 97 | ||||
| 6 | 152.4 | 19.5 | 13 1/8 | 333.4 | 120 | ||||
| 6 1/4 | 158.8 | 19.5 | 13 5/8 | 346.1 | 120 | ||||
| 6 1/2 | 165.1 | 19.5 | 13 3/4 | 349.3 | 120 | ||||
| 6 3/4 | 171.5 | 21 | 14 5/8 | 368.3 | 7 5/8 | 46.1~54.2 | 160 | ||
| 7 1/2 | 190.5 | 4 1/2 | 16.3~21.7 | 28 | 14 3/4 | 374.7 | 160 | ||
| 7 7/8 | 200 | 29.5 | 15 | 381 | 185 | ||||
| 8 1/4 | 209.6 | 38 | 15 1/2 | 393.7 | 189 | ||||
| 8 3/8 | 212.7 | 38 | 16 | 406.4 | 205 | ||||
| 8 1/2 | 215.9 | 38 | 17 1/2 | 444.5 | 255 | ||||
| 8 3/4 | 222.3 | 40 | 20 | 508.0 | 443 | ||||
| 9 1/2 | 241.3 | 6 5/8 | 38~43.4 | 57.5 | 22 | 558.8 | 580 | ||
| 9 7/8 | 250.8 | 60 | 24 | 609.6 | 650 | ||||
| 10 5/8 | 269.9 | 74 | 26 | 660.4 | 810 | ||||
The Tricone Rotary Rock Bit is an essential drilling tool for many industries. Its unique design makes it the perfect choice for drilling through challenging conditions such as varied formations, including hard and abrasive rocks. The Tricone Rock Bit is designed with a 90° blade angle and is made from a high-quality material like carbide with a 2.5mm blade thickness and 8mm blade height. It is manufactured in Hebei, China, and is the perfect choice for reliable and efficient drilling.
The Tricone Rock Bit is highly versatile and is suitable for various drilling applications including oil and gas, geothermal, and mining. It is also suitable for drilling in tough conditions, such as high pressure and temperature. In addition, the Tricone Rock Bit is designed to provide maximum torque and long-lasting performance.
The Tricone Rock Bit is a reliable and efficient drilling tool, designed to provide maximum performance in a variety of drilling operations. Its unique design and high-quality material make it the perfect choice for reliable and efficient drilling. It is manufactured in Hebei, China and is the ideal choice for drilling through challenging conditions like hard and abrasive rocks.
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
