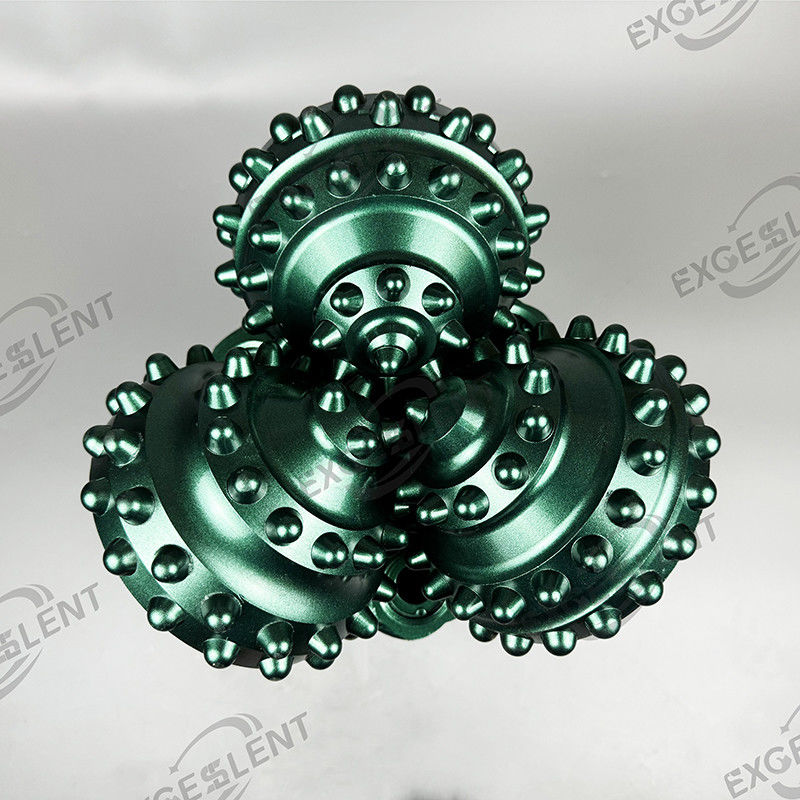

With blade thickness of 2.5mm, the Tricone Rock Bit provides exceptional durability and longevity, ensuring that it will last for a long time. Its shank type is Hex, which provides a secure grip and makes it easy to install and remove the bit.
The Tricone Rock Bit is designed with a cone cutting edge that allows it to easily drill through any type of rock or soil. It is also equipped with a thread type of API Reg, which makes it compatible with a wide range of drilling rigs.
Whether you are drilling for oil, gas, or water, the Tricone Rock Bit is the perfect tool for the job. Its exceptional durability, reliability, and efficiency make it a must-have for anyone who wants to get the job done right the first time.
Invest in the Tricone Rock Bit today and experience the difference that a high-quality drilling tool can make in your next project.
1. Wide range of applications: widely used in oil fields, mines, geological survey, hydrological detection, engineering piling, geothermal development, water wells and other drilling fields.
2. Durability: alloy sand is used to harden the back of the palm and the surface of the teeth, thus greatly increasing the service life of the drill bit;
3. High efficiency: The optimized design of the number of tooth rows, number of teeth, exposed tooth height and tooth shape gives full play to the cutting ability and cutting speed of the drill.
Parameters | IADC code | Formation | Weight (kN/mm) |
Rotary Speed (r/min) |
437 | Soft formations with low compressive strength and high drillability, such as shale, clay, sandstone, conglomerate, etc. | 0.35-0.95 | 140-60 | |
527 | Soft formations with low compressive strength, such as shale, clay, sandstone, soft limestone, salt rock, anhydrite, etc. | 0.35-1.05 | 120-50 | |
647 | High compressive strength, medium hard and highly abrasive formations, such as limestone, dolomite, sandstone, chert, etc. | 0.70-1.20 | 70-40 | |
735 | Medium abrasive formations and abrasive hard formations, such as hard shale, hard limestone, sandstone, siltstone, basalt, chert, granite, quartz sandstone, hard dolomite, hard limestone, pyrite,etc. | 0.60-1.10 | 90-50 | |
837 | Highly abrasive hard formations, such as hard limestone, dolomite, hard sandstone, chert, etc. | 0.70-1.20 | 70-40 | |
Inch:Sanlong offers you standard sizes and custom sizes ranging from 3.5 to 26 inch. |
The Tricone Rock Bit has three blades made from carbide material. Each blade has a height of 8mm and a width of 6mm. The shank type of the Tricone Rock Bit is hex. The product is suitable for a variety of drilling applications, including mining, oil and gas exploration, and water drilling.
The Tricone Rock Bit can be used in a variety of drilling scenarios, including:
Overall, the Tricone Rock Bit is a versatile drilling tool that can handle a range of drilling applications and scenarios. Its high-quality materials and manufacturing processes ensure that it is a reliable and durable product.
Product Packaging:
Shipping:
Q: What is the place of origin of the Tricone Drilling Bit?
A: The Tricone Drilling Bit is made in Hebei, China.
Q: Does the Tricone Drilling Bit have any certification?
A: Yes, the Tricone Drilling Bit has ISO9001 certification.
Q: What is the price of the Tricone Drilling Bit?
A: The price of the Tricone Drilling Bit is negotiable.
Q: How is the Tricone Drilling Bit packaged?
A: The Tricone Drilling Bit is packaged according to customer needs.
Q: What are the payment terms for the Tricone Drilling Bit?
A: The payment terms for the Tricone Drilling Bit are TT.
Q: What is the delivery time for the Tricone Drilling Bit?
A: The delivery time for the Tricone Drilling Bit is 15-30 work days.
