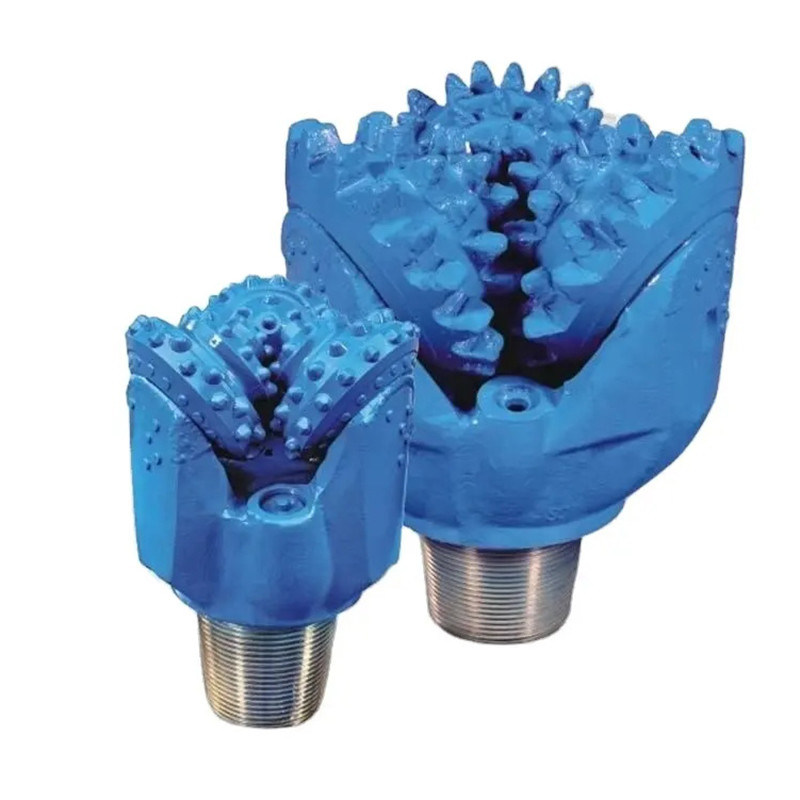

Mill Tooth Tricone Bit
>
|
| Place of Origin | HeBei . China |
| Certification | ISO9001 |
Introduction
Rock bits are still commonly used in oil drilling and geological drilling. The cone bit has the function of impacting, crushing, and shearing the rock in the formation during rotation, so it can adapt to various soft, medium, and hard formations.
| item | value |
| Warranty | 1 Year |
| Applicable Industries | Construction works , Energy & Mining |
| Weight (KG) | Standard |
| Type | Cone Bit |
| Machine Type | Drilling Tool |
| Material | Stainless Steel |
| Processing Type | Forging |
| Use | Well Drilling |
| Wob(Kn/mm) | 0.45~1.00 Kn/mm |
| Transport Package | Ply Wooden Box/ Cartons |
Features
(1) Multifunctional drilling tools
(2) Low initial usage cost
(3) More control options
(4) Better in variable and complex rock formations, especially in hard rock formations
(5) Has stronger impact resistance
| Bit Size | Connection | Making Up Torque | Weight | Bit Size | Connection | Making Up Torque | Weight | ||
| Inch | mm | Inch | KN.m | Kg | Inch | mm | Inch | KN.m | Kg |
| 3 1/2 | 95.3 | 2 3/8 | 4.1~4.7 | 5 | 11 | 279.4 | 6 5/8 | 38~43.4 | 85 |
| 4 5/8 | 117.5 | 2 7/8 | 6.1~7.5 | 6.5 | 11 5/8 | 295.3 | 89 | ||
| 4 3/4 | 120.7 | 7 | 12 1/8 | 304.8 | 94 | ||||
| 5 1/2 | 139 2/3 | 3 1/2 | 9.5~12.2 | 17 | 12 1/4 | 311.2 | 95 | ||
| 5 7/8 | 142.9 | 18 | 12 15/32 | 315.9 | 97 | ||||
| 6 | 152.4 | 19.5 | 13 1/8 | 333.4 | 120 | ||||
| 6 1/4 | 158.8 | 19.5 | 13 5/8 | 346.1 | 120 | ||||
| 6 1/2 | 165.1 | 19.5 | 13 3/4 | 349.3 | 120 | ||||
| 6 3/4 | 171.5 | 21 | 14 5/8 | 368.3 | 7 5/8 | 46.1~54.2 | 160 | ||
| 7 1/2 | 190.5 | 4 1/2 | 16.3~21.7 | 28 | 14 3/4 | 374.7 | 160 | ||
| 7 7/8 | 200 | 29.5 | 15 | 381 | 185 | ||||
| 8 1/4 | 209.6 | 38 | 15 1/2 | 393.7 | 189 | ||||
| 8 3/8 | 212.7 | 38 | 16 | 406.4 | 205 | ||||
| 8 1/2 | 215.9 | 38 | 17 1/2 | 444.5 | 255 | ||||
| 8 3/4 | 222.3 | 40 | 20 | 508.0 | 443 | ||||
| 9 1/2 | 241.3 | 6 5/8 | 38~43.4 | 57.5 | 22 | 558.8 | 580 | ||
| 9 7/8 | 250.8 | 60 | 24 | 609.6 | 650 | ||||
| 10 5/8 | 269.9 | 74 | 26 | 660.4 | 810 | ||||
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
