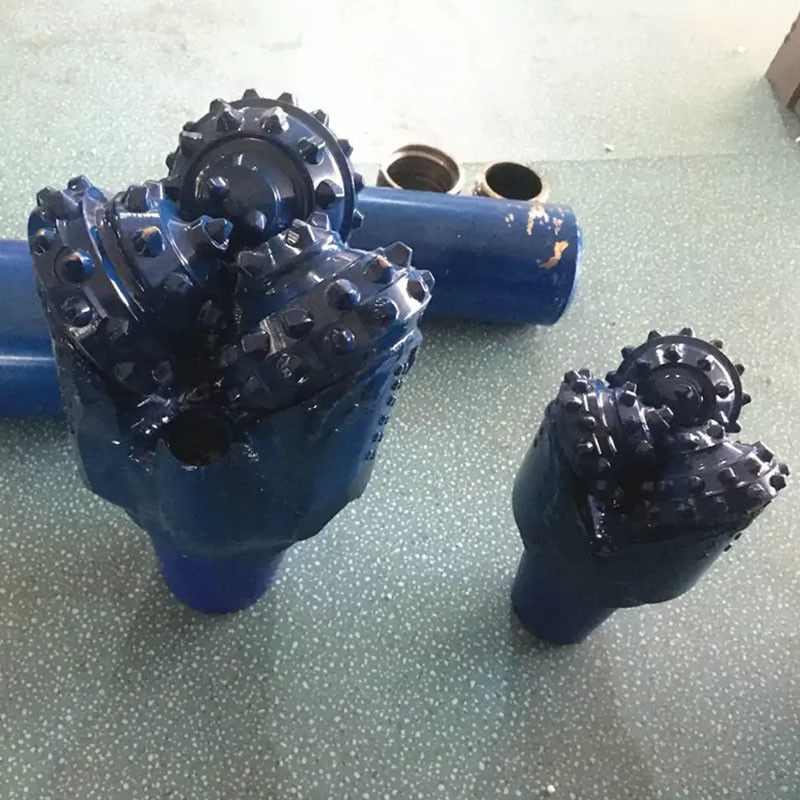

Mill Tooth Tricone Bit
>
|
| Place of Origin | Hebei,China |
| Certification | ISO9001 |
Tricone Drilling Bit is a drill bit with three cones, using tungsten carbide as the cutting edge. It is designed to drill through rocks and other hard surfaces, and is often used in oil and gas drilling. It features a connection pin, 8mm blade height, 2.5mm blade thickness, 90° blade angle, and is made of high-quality tungsten carbide material, making it an ideal choice for drilling through tough rocks and abrasive surfaces. This tricone rock bit is perfect for drilling in oil and gas wells, and is built to last with its durable construction and tungsten carbide cutting edge.
| Attribute | Value |
|---|---|
| Blade Angle | 90° |
| Cutting Edge | Cone |
| Shape | Tricone |
| Connection | Pin |
| Thread Type | API Reg |
| Cutting Structure | Milled Tooth |
| Weight | 2.5kg |
| Number of Blades | 3 |
| Teeth | 3 |
| Shank Type | Hex |
| Material | Tungsten Carbide |
| Type | Tricone Rock Bit, Steel Tooth Bit |
Tricone Drilling Bit is a rotary rock bit that is designed for drilling projects. It is a type of roller cone bit with three cones that provide superior drilling performance. The blades on the bit are shaped with a 90° angle and have a width of 6mm, providing excellent stability while drilling. The cutting edges of the blades are cone shaped and made of carbide, the strongest and most durable material used for drilling applications. The material is resistant to wear and tear, providing long-term reliability. The Tricone Drilling Bit weighs only 2.5kg, making it highly portable and easy to transport to job sites.
The Tricone Drilling Bit is certified with ISO9001 and the price is negotiable. The packaging details can be tailored according to the customer’s needs. A 15-30 work days delivery time is also available. Payment terms can be TT. The Tricone Drilling Bit is made in Hebei, China, which is known for its high quality and reliable products.
Tricone Drilling Bit is the perfect choice for drilling projects. It is lightweight, durable, and provides superior performance. With its reliable construction and excellent cutting edge, it is the ideal tool for any drilling job.
| Bit Size | Connection | Making Up Torque | Weight | Bit Size | Connection | Making Up Torque | Weight | ||
| Inch | mm | Inch | KN.m | Kg | Inch | mm | Inch | KN.m | Kg |
| 3 1/2 | 95.3 | 2 3/8 | 4.1~4.7 | 5 | 11 | 279.4 | 6 5/8 | 38~43.4 | 85 |
| 4 5/8 | 117.5 | 2 7/8 | 6.1~7.5 | 6.5 | 11 5/8 | 295.3 | 89 | ||
| 4 3/4 | 120.7 | 7 | 12 1/8 | 304.8 | 94 | ||||
| 5 1/2 | 139 2/3 | 3 1/2 | 9.5~12.2 | 17 | 12 1/4 | 311.2 | 95 | ||
| 5 7/8 | 142.9 | 18 | 12 15/32 | 315.9 | 97 | ||||
| 6 | 152.4 | 19.5 | 13 1/8 | 333.4 | 120 | ||||
| 6 1/4 | 158.8 | 19.5 | 13 5/8 | 346.1 | 120 | ||||
| 6 1/2 | 165.1 | 19.5 | 13 3/4 | 349.3 | 120 | ||||
| 6 3/4 | 171.5 | 21 | 14 5/8 | 368.3 | 7 5/8 | 46.1~54.2 | 160 | ||
| 7 1/2 | 190.5 | 4 1/2 | 16.3~21.7 | 28 | 14 3/4 | 374.7 | 160 | ||
| 7 7/8 | 200 | 29.5 | 15 | 381 | 185 | ||||
| 8 1/4 | 209.6 | 38 | 15 1/2 | 393.7 | 189 | ||||
| 8 3/8 | 212.7 | 38 | 16 | 406.4 | 205 | ||||
| 8 1/2 | 215.9 | 38 | 17 1/2 | 444.5 | 255 | ||||
| 8 3/4 | 222.3 | 40 | 20 | 508.0 | 443 | ||||
| 9 1/2 | 241.3 | 6 5/8 | 38~43.4 | 57.5 | 22 | 558.8 | 580 | ||
| 9 7/8 | 250.8 | 60 | 24 | 609.6 | 650 | ||||
| 10 5/8 | 269.9 | 74 | 26 | 660.4 | 810 | ||||
Tricone Drilling Bits are packed in wooded cases or cardboard boxes and strapped to pallets. Each pallet can hold up to 2 tons of Tricone Drilling Bits. Once the packaging is done, the pallet will be shipped to the designated destination using a reliable logistic company.
Q1: Where is the Tricone Drilling Bit manufactured?
A1: The Tricone Drilling Bit is manufactured in Hebei, China.
Q2: Is the Tricone Drilling Bit certified?
A2: Yes, the Tricone Drilling Bit is certified with ISO9001.
Q3: How much does the Tricone Drilling Bit cost?
A3: The price of the Tricone Drilling Bit is negotiable.
Q4: What is the packaging for the Tricone Drilling Bit?
A4: The packaging for the Tricone Drilling Bit is according to customer needs.
Q5: How long does it take to deliver the Tricone Drilling Bit?
A5: It takes 15-30 work days to deliver the Tricone Drilling Bit.
