HDD Rock Reamers
>
|
| Place of Origin | HeBei . China |
| Certification | ISO9001 |
Introduction
1. Suitable for medium to medium hard formations with high fracture resistance
(Hard shale, sandstone, etc.)
2. The drill bearing is a non-sealed roller bearing.
3. The tip of the palm is welded with hard surface, and the carbide blade is protected by the gauge
Is pressed into the head OD.
4. The surface of the cone gauge is reinforced with cemented carbide press blocks.

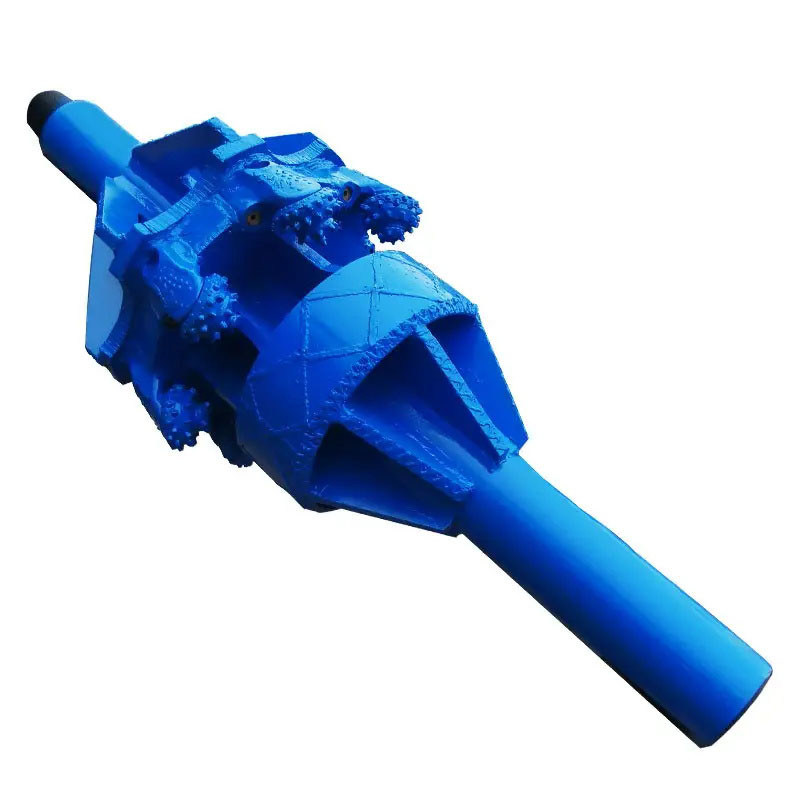

| Product name | HDD hole opener |
| Usage | horizontal directional drilling |
| Application formation | medium hard with relatively higher compressive strength and hard stringers, such as hard shale, sandstone and limestone, etc. |
| Weight | 200kg-400kg |
| MOQ | 1 |
| Reamer Size | Cone size and # of Cones | Threads | |||
| Cone size | #of Cones | Cone size | # of Cones | ||
| 10“ | 6 1/2” | 3 | NC23 NC26(2 3/8IF) D50 D80 NC31(2 7/8IF) NC38(3 1/2IF) | ||
| 12“ | 8 1/2” | 3 | |||
| 16“ |
8 1/2”or 9 1/2” |
4 |
For 8 1/2”-9 1/2” Cone: NC23 NC26(2 3/8”IF) D50 D80 NC31(2 7/8”IF) NC38(3 1/2”IF)
For 12 1/4”-13 5/8” Cone: 4”IF 4 1/2IF 5 1/2FH 6 5/8FH |
||
| 18”-20“ | 5 | 12 1/4” | 4 | ||
| 22”-24“ | 6 |
12 1/4” or 13 5/8” |
5 | ||
| 28”-30” | 7 | 6 | |||
| 32”-34” | 8 | 7 | |||
| 36“-38” | 9 | 8 | |||
| 40“-42” | 10 | 9 | |||
| 44“-46” | 11 | 10 | |||
| 48”-50” | 12-13 | 11 | |||
Features
1. Adopt high-precision metal seal.
2. The steel ball locks the cone to adapt to high speed.
3. New grease resistant to high temperature and wear at 250℃.
4. The blade adopts high-strength and high-toughness carbide alloy teeth, which fully exerts the blade's high wear resistance and excellent cutting ability, and improves the life of the cutting tooth of the drill bit.
Used in
Tri-cone bit is a decelerating bit. It is based on the fact that the speed of the cone is less than the speed of the bit. It is suitable for sidetracking of old wells and deepening of small boreholes under high speed and high drilling pressure.
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
