HDD Rock Reamers
>
|
| Place of Origin | Hebei,China |
| Certification | ISO9001 |

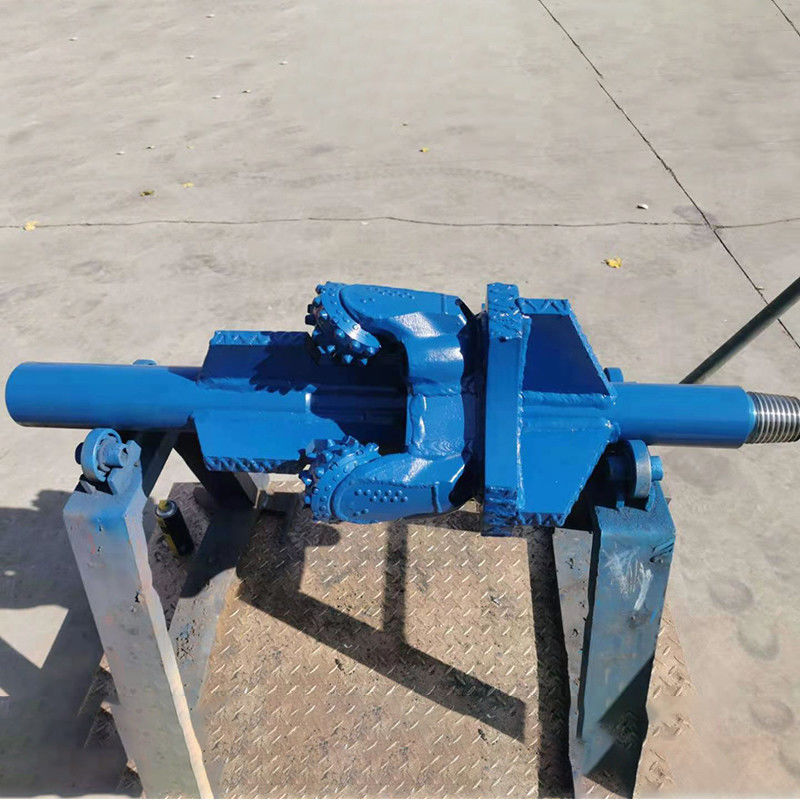

HDD Rock Reamers are rotary hole reamers specially designed for well drilling. Made of high manganese steel, these hole openers are available in customized sizes and shapes to meet the needs of various drilling applications. With excellent performance in hole enlarging, these oil well reamers can efficiently and smoothly open up the hole for drilling. Besides, the drilling hole reamers are packed in wooden cases to ensure the safety of the product during shipping.
| Parameter | Details |
|---|---|
| Drilling Hole Reamers | Horizontal Directional Drilling |
| Connection | Threaded Or Non-Threaded |
| Rotation Speed | Customization |
| Size | Customization |
| Material | High Manganese Steel |
| Durability | High |
| Packing | Wooden Case,Customization |
| Cutter Bearing | Rubber Or Metal Bearing |
| Processing Type | Forging |
| Formation | Medium Hard Formation |
HDD Rock Reamers are specially designed for rock drilling reaming and hole enlarging applications. They are manufactured in Hebei, China and certified by ISO9001. The price is negotiable and the packaging can be customized according to customer needs. The delivery time is 15-30 work days and the payment term is TT. The reamers are designed for medium hard formation and suitable for horizontal directional drilling. The cutter bearing can be rubber or metal bearing and the connection can be threaded or non-threaded. HDD Rock Reamers are widely used in machinery repair shops and construction works.
| Reamer Size | Cone size and # of Cones | Threads | |||
| Cone size | #of Cones | Cone size | # of Cones | ||
| 10“ | 6 1/2” | 3 | NC23 NC26(2 3/8IF) D50 D80 NC31(2 7/8IF) NC38(3 1/2IF) | ||
| 12“ | 8 1/2” | 3 | |||
| 16“ |
8 1/2”or 9 1/2” |
4 |
For 8 1/2”-9 1/2” Cone: NC23 NC26(2 3/8”IF) D50 D80 NC31(2 7/8”IF) NC38(3 1/2”IF)
For 12 1/4”-13 5/8” Cone: 4”IF 4 1/2IF 5 1/2FH 6 5/8FH |
||
| 18”-20“ | 5 | 12 1/4” | 4 | ||
| 22”-24“ | 6 |
12 1/4” or 13 5/8” |
5 | ||
| 28”-30” | 7 | 6 | |||
| 32”-34” | 8 | 7 | |||
| 36“-38” | 9 | 8 | |||
| 40“-42” | 10 | 9 | |||
| 44“-46” | 11 | 10 | |||
| 48”-50” | 12-13 | 11 | |||
For any additional inquiries, please contact us at info@example.com.
Q1: What is HDD Rock Reamers?
A1: HDD Rock Reamers is a specialized tool used to enlarge and shape existing holes in soil or rock. It is mainly used in horizontal directional drilling (HDD).
Q2: Where is HDD Rock Reamers made?
A2: HDD Rock Reamers are made in Hebei, China and certified by ISO9001.
Q3: What is the price of HDD Rock Reamers?
A3: The price of HDD Rock Reamers is negotiable.
Q4: What is the packaging of HDD Rock Reamers?
A4: The packaging of HDD Rock Reamers can be customized according to customer needs.
Q5: How long does it take to deliver HDD Rock Reamers?
A5: It usually takes 15-30 work days to deliver HDD Rock Reamers. Payment can be made by T/T.
