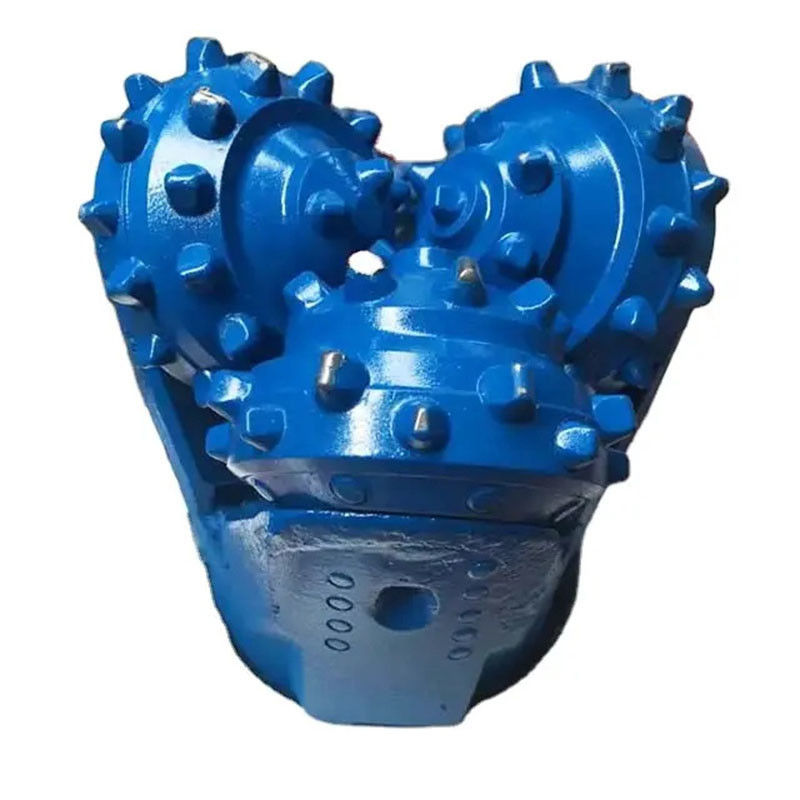

Mill Tooth Tricone Bit
>
|
| Place of Origin | Hebei,China |
| Certification | ISO9001 |
The Tricone Rotary Rock Bit is a roller cone bit that is designed for drilling rocks and other hard materials. It features a weight of 2.5kg with a cutting structure composed of three milled teeth. Its three blades are made with a thickness of 2.5mm, making it ideal for drilling in hard rock formations. The Tricone Rotary Rock Bit is the perfect tool for drilling deeper depths, faster. It is easy to use and can be used in a variety of drilling applications. With its reliable and durable construction, it is an ideal choice for those looking for a reliable and effective rotary rock bit.
| Parameter | Value |
|---|---|
| Product Type | Tricone Rotary Rock Bit, Roller Cone Bit, Tungsten Carbide Bit |
| Material | Carbide |
| Teeth | 3 |
| Blade Width | 6mm |
| Size | 3 7/8 |
| Blade Height | 8mm |
| Cutting Structure | Milled Tooth |
| Shank Type | Hex |
| Shape | Tricone |
| Weight | 2.5kg |
| Connection | Pin |
Tricone Drilling Bit is a type of Roller Cone Bit, which is widely used in various geological drilling operations. It is made of high-quality Tungsten Carbide and has a blade angle of 90° and thread type of API Reg. The blade width is 6mm and the weight is 2.5kg. It is an excellent choice for oil well drilling, gas well drilling, water well drilling and other geological drilling engineering. The Place of Origin is Hebei,China and it has ISO9001 quality certification. The price is negotiable and the packaging details can be customized according to customer needs. The delivery time is 15-30 work days and we accept TT for payment.
The Tricone Drilling Bit is a reliable and durable tool for drilling operations. It features high wear resistance and high strength, which can make it work efficiently and effectively in a variety of geological formations. The carbide material ensures that the bit will last longer and can withstand the harshest drilling conditions. Moreover, the threaded design provides a more uniform and accurate drilling operation. It is also easy to install and maintain, making it perfect for a variety of drilling applications.
Tricone Drilling Bit is an ideal choice for oil and gas well drilling, water well drilling, geothermal well drilling, directional drilling, etc. It is suitable for a variety of drilling projects, such as mining, tunneling, foundation drilling, and so on. The bit also has excellent performance in deep well and long hole drilling, which can save time and cost. Additionally, the bit has a stable and reliable connection, which can prevent unexpected accidents during the drilling process.
Tricone Drilling Bit is a high-quality and cost-effective tool for all kinds of drilling operations. It is made of the highest quality Tungsten Carbide material, which ensures excellent wear resistance and strength. The blade angle is 90°, the thread type is API Reg, and the blade width is 6mm. The weight is 2.5kg and the Place of Origin is Hebei,China. The price is negotiable and the packaging details can be customized according to customer needs. The delivery time is 15-30 work days and we accept TT for payment.
| Bit Size | Connection | Making Up Torque | Weight | Bit Size | Connection | Making Up Torque | Weight | ||
| Inch | mm | Inch | KN.m | Kg | Inch | mm | Inch | KN.m | Kg |
| 3 1/2 | 95.3 | 2 3/8 | 4.1~4.7 | 5 | 11 | 279.4 | 6 5/8 | 38~43.4 | 85 |
| 4 5/8 | 117.5 | 2 7/8 | 6.1~7.5 | 6.5 | 11 5/8 | 295.3 | 89 | ||
| 4 3/4 | 120.7 | 7 | 12 1/8 | 304.8 | 94 | ||||
| 5 1/2 | 139 2/3 | 3 1/2 | 9.5~12.2 | 17 | 12 1/4 | 311.2 | 95 | ||
| 5 7/8 | 142.9 | 18 | 12 15/32 | 315.9 | 97 | ||||
| 6 | 152.4 | 19.5 | 13 1/8 | 333.4 | 120 | ||||
| 6 1/4 | 158.8 | 19.5 | 13 5/8 | 346.1 | 120 | ||||
| 6 1/2 | 165.1 | 19.5 | 13 3/4 | 349.3 | 120 | ||||
| 6 3/4 | 171.5 | 21 | 14 5/8 | 368.3 | 7 5/8 | 46.1~54.2 | 160 | ||
| 7 1/2 | 190.5 | 4 1/2 | 16.3~21.7 | 28 | 14 3/4 | 374.7 | 160 | ||
| 7 7/8 | 200 | 29.5 | 15 | 381 | 185 | ||||
| 8 1/4 | 209.6 | 38 | 15 1/2 | 393.7 | 189 | ||||
| 8 3/8 | 212.7 | 38 | 16 | 406.4 | 205 | ||||
| 8 1/2 | 215.9 | 38 | 17 1/2 | 444.5 | 255 | ||||
| 8 3/4 | 222.3 | 40 | 20 | 508.0 | 443 | ||||
| 9 1/2 | 241.3 | 6 5/8 | 38~43.4 | 57.5 | 22 | 558.8 | 580 | ||
| 9 7/8 | 250.8 | 60 | 24 | 609.6 | 650 | ||||
| 10 5/8 | 269.9 | 74 | 26 | 660.4 | 810 | ||||
Tricone Drilling Bit Packaging and Shipping
Tricone drilling bits are packaged and shipped in heavy-duty, reinforced cardboard boxes to ensure safe arrival to the customer. The boxes are designed to protect the bits from moisture, vibration, and shock. Each box contains one Tricone drilling bit. For larger orders, several bits may be packaged together in the same box.
Prior to shipping, each Tricone drilling bit is given a thorough inspection to ensure that it meets the highest quality and safety standards. The bits are then carefully wrapped in foam to prevent damage during transit.
When ordering a Tricone drilling bit, customers can choose from a variety of shipping options. Standard ground shipping is available for most orders, while express shipping is available for rush orders. All orders are shipped with a tracking number for the customer's convenience.
