Mill Tooth Tricone Bit
>
|
| Place of Origin | Hebei,China |
| Certification | ISO9001 |
API Reg Tungsten Carbide Bits for Machining & Cutting

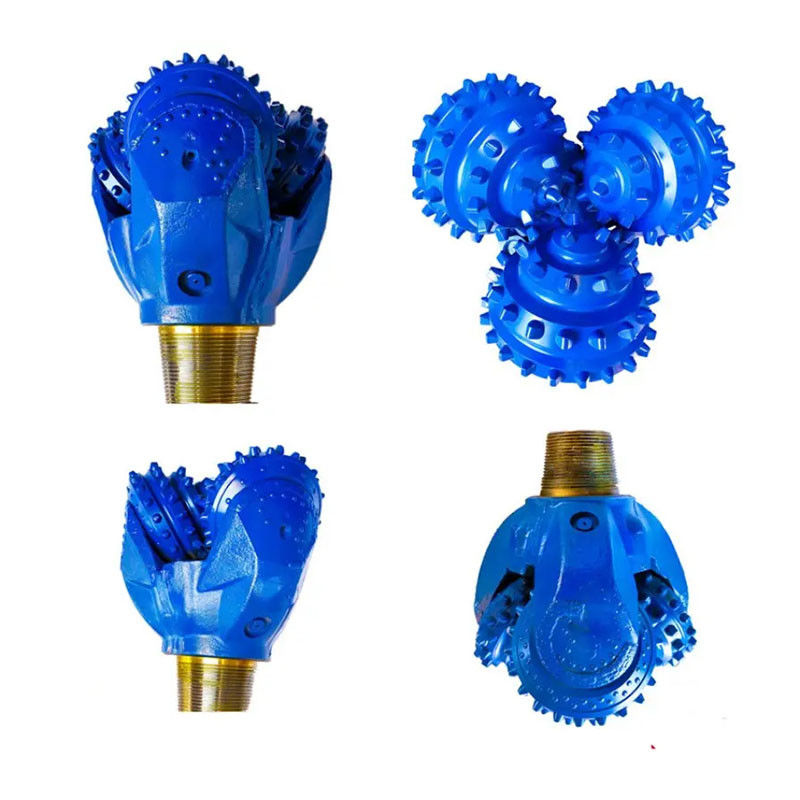

The Tricone Rotary Rock Bit is an advanced drilling tool used for drilling applications in various construction and mining industries. It is made from high-grade Carbide material that is highly durable and offers excellent performance in harsh drilling conditions. The Tricone Rock Bit features a 2.5mm Blade Thickness, Hex Shank Type and a Pin Connection that ensures secure and reliable connections. It is available in various shapes such as Tricone and can be used as a single bit or set for larger drilling projects.
| Product Attribute | Value |
|---|---|
| Tricone Rock Bit | Yes |
| Rotary Rock Bit | Yes |
| Teeth | 3 |
| Shape | Tricone |
| Weight | 2.5kg |
| Cutting Edge | Cone |
| Connection | Pin |
| Blade Width | 6mm |
| Blade Height | 8mm |
| Material | Tungsten Carbide |
| Blade Thickness | 2.5mm |
| Shank Type | Hex |
Tricone Rock Bit, also known as Roller Cone Bit, is widely used in rock drilling, mining, and oil field applications. It is of Hebei, China origin, certified by ISO9001, and comes in a variety of sizes, threads, and blade angles. The Tricone Rock Bit has a blade width of 6mm, a blade angle of 90° and a weight of 2.5kg. It is available in 3 7/8 size and API Reg thread type. The price of the Tricone Rock Bit is negotiable and the packaging details are customizable according to customer needs. The delivery time is usually 15-30 work days, and the payment is usually done through TT.
| Bit Size | Connection | Making Up Torque | Weight | Bit Size | Connection | Making Up Torque | Weight | ||
| Inch | mm | Inch | KN.m | Kg | Inch | mm | Inch | KN.m | Kg |
| 3 1/2 | 95.3 | 2 3/8 | 4.1~4.7 | 5 | 11 | 279.4 | 6 5/8 | 38~43.4 | 85 |
| 4 5/8 | 117.5 | 2 7/8 | 6.1~7.5 | 6.5 | 11 5/8 | 295.3 | 89 | ||
| 4 3/4 | 120.7 | 7 | 12 1/8 | 304.8 | 94 | ||||
| 5 1/2 | 139 2/3 | 3 1/2 | 9.5~12.2 | 17 | 12 1/4 | 311.2 | 95 | ||
| 5 7/8 | 142.9 | 18 | 12 15/32 | 315.9 | 97 | ||||
| 6 | 152.4 | 19.5 | 13 1/8 | 333.4 | 120 | ||||
| 6 1/4 | 158.8 | 19.5 | 13 5/8 | 346.1 | 120 | ||||
| 6 1/2 | 165.1 | 19.5 | 13 3/4 | 349.3 | 120 | ||||
| 6 3/4 | 171.5 | 21 | 14 5/8 | 368.3 | 7 5/8 | 46.1~54.2 | 160 | ||
| 7 1/2 | 190.5 | 4 1/2 | 16.3~21.7 | 28 | 14 3/4 | 374.7 | 160 | ||
| 7 7/8 | 200 | 29.5 | 15 | 381 | 185 | ||||
| 8 1/4 | 209.6 | 38 | 15 1/2 | 393.7 | 189 | ||||
| 8 3/8 | 212.7 | 38 | 16 | 406.4 | 205 | ||||
| 8 1/2 | 215.9 | 38 | 17 1/2 | 444.5 | 255 | ||||
| 8 3/4 | 222.3 | 40 | 20 | 508.0 | 443 | ||||
| 9 1/2 | 241.3 | 6 5/8 | 38~43.4 | 57.5 | 22 | 558.8 | 580 | ||
| 9 7/8 | 250.8 | 60 | 24 | 609.6 | 650 | ||||
| 10 5/8 | 269.9 | 74 | 26 | 660.4 | 810 | ||||
Tricone Drilling Bit Packaging and Shipping:
Tricone drilling bits come with a protective, easy-to-handle packaging. The box is designed to protect the bit from external factors such as moisture, dust, and other environmental factors. The box also has a unique design that makes it easy to store and transport the bits.
The tricone drilling bits are shipped in standard shipping boxes. The boxes are designed to protect the bits from any external damage that may occur during transit. The boxes are also designed to handle the weight of the bits and ensure that they arrive safely at their destination.
The tricone drilling bits are packaged and shipped according to best practices and regulations. All materials used in packaging and shipping the bits are of high quality and meet the standards of the industry.
