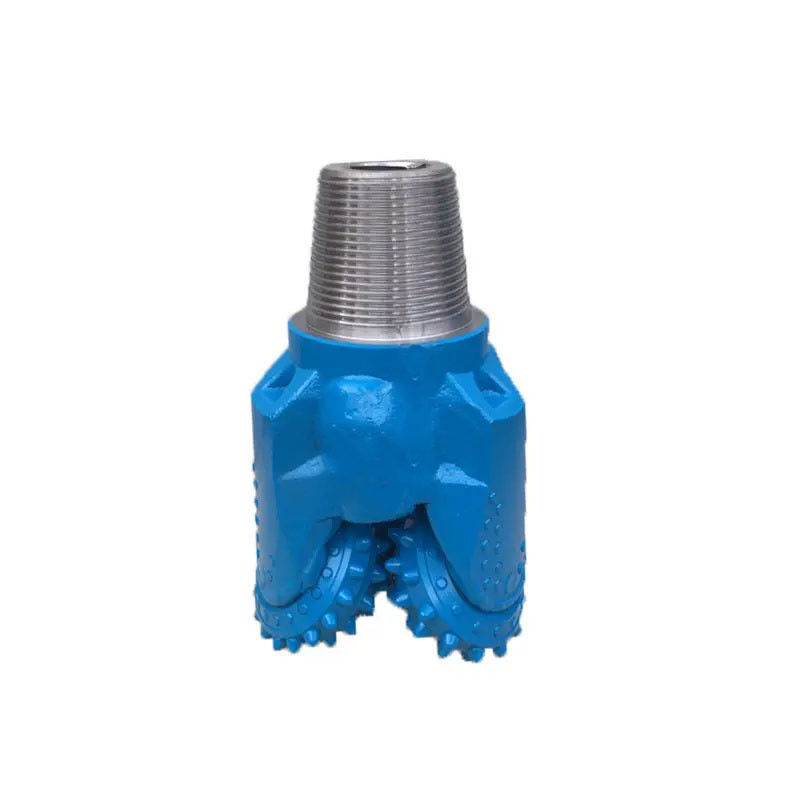

Tricone Roller Bit
>
|
| Place of Origin | HeBei . China |
| Certification | ISO9001 |
Introduction
Medium to medium hard formation is suitable for medium abrasive consolidated formation with compressive strength between 140 – 485 Mpa, such as hard limestone, quartzite, granodiorite and medium grade metamorphic rock cutting structure: these bits are characterized by medium spacing conical blades and medium protrusion. This configuration can improve the good penetration rate of medium hardness and medium abrasive formations. Provide smaller hard alloy blades on gauges and inner rows, or deposit hard metal in the tip area to contain shell erosion and improve performance.
|
IADC
|
WOB(KN/MM)
|
RPM(r/min)
|
Applicable Formations
|
|
116 117
|
0.35~0.8
|
150~80
|
Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk etc.
|
|
136 137
|
0.35~1.0
|
120~60
|
Soft to mesium soft formations with low compressive strength and high drillability.such as medium soft shale,hard gypsum,medium
soft limestone.medium soft sandstone soft formation with harder nterbeds,ect. |
|
216 217
|
0.4~1.0
|
100~60
|
Medium hard formations with high compressive strength,such as medium soft shale,hard gypsum,medium soft limestone,medium soft
sandstone,soft formation with harder interbeds ect. |
|
246 247
|
0.4~1.0
|
80~50
|
Medium hard formations with high compressive strength,such as abrasive shale.limestone,sandstone,dolomite,hard gypsum,marble,ect.
|
|
417 437
|
0.35~0.9
|
150~70
|
Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk,gypsum,salt,soft shale,soft
limestone,etc. |
Features
1. High strength, high elasticity, high temperature resistance, high wear resistance.
2. High precision metal seal.
3. Lock the balls to adapt to high speed.
4. Using high-strength and high-toughness carbide teeth,
5. The hour cone bit has the function of impacting, breaking and shearing broken rocks.
6. The roller cone bit adapts to the soft, medium and hard of various formations.
7. Reasonable price and long service life.
Used in
Tri-cone bit is a decelerating bit. It is based on the fact that the speed of the cone is less than the speed of the bit. It is suitable for sidetracking of old wells and deepening of small boreholes under high speed and high drilling pressure.
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
