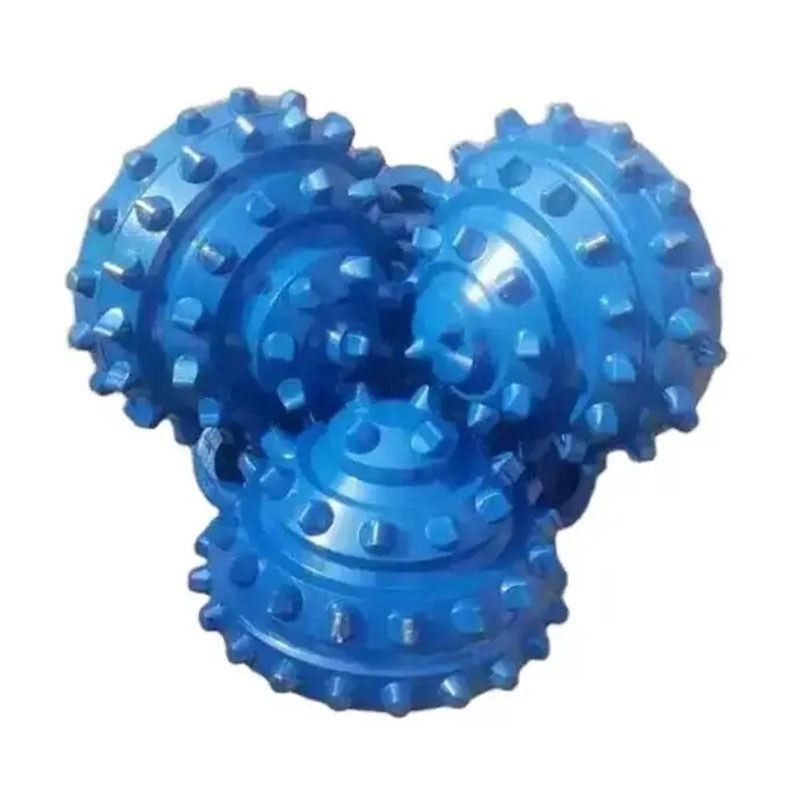

Three Blades 2.5mm Thickness Tricone Roller Bit Milled Tooth
  • Three Blades 2.5mm Thickness Tricone Roller Bit Milled Tooth

Three Blades 2.5mm Thickness Tricone Roller Bit Milled Tooth

Place of Origin Hebei,China
Certification ISO9001
Product Details
Connection:
Pin
Shape:
Tricone
Blade Angle:
90°
Number Of Blades:
3
Size:
3 7/8
Blade Thickness:
2.5mm
Blade Width:
6mm
Blade Height:
8mm
Highlight:

Tricone Roller Bit Milled Tooth

,

Three Blades Tricone Roller Bit

,

Milled Tooth rock roller bits

Payment & Shipping Terms
Price
Negotiable
Packaging Details
According to customer needs
Delivery Time
15-30 work days
Payment Terms
TT
Product Description

3-Blade Tricone Drilling Bit 2.5mm Thickness

Product Description:

Tricone Drilling Bit

Tricone drilling bit, also known as rotary rock bit and roller cone bit, is specifically designed for drilling through rocks. It features an API Reg thread type, a tricone shape, 8mm blade height, 3 blades and 2.5mm blade thickness. This tricone bit can easily cut through the toughest rocks and is capable of providing drilling service in any environment.

Tricone drilling bit is an ideal tool for drilling in all types of formations. It is designed to work effectively even in the most difficult drilling conditions. Its robust construction and cutting-edge engineering allow it to penetrate through the toughest rocks with ease. Its unique tricone shape and 8mm blade height allow it to cut through rocks quickly and efficiently.

Tricone drilling bit is an essential tool for any drilling operation. It is designed to provide superior performance and reliability. Its strong construction and advanced design provide enhanced reliability and durability. This tricone bit is capable of providing fast and efficient drilling services in any environment. Its tough construction and advanced design make it an ideal choice for drilling in all types of formations.

Tricone drilling bit is a reliable and efficient tool for drilling operations. Its robust construction and cutting-edge engineering make it an ideal choice for drilling in any environment. It is designed to work effectively even in the most difficult drilling conditions and its advanced design ensures superior performance and reliability. This tricone bit is capable of providing fast and efficient drilling services in any environment.



Features:

  • Product Name: Tricone Drilling Bit
  • Teeth: 3
  • Cutting Structure: Milled Tooth
  • Thread Type: API Reg
  • Blade Width: 6mm
  • Blade Height: 8mm
  • Rotary Rock Bit
  • Tungsten Carbide Bit
  • Steel Body Bit


Technical Parameters:

Attribute Value
Tricone Rock Bit Yes
Size 3 7/8
Cutting Edge Cone
Connection Pin
Teeth 3
Shape Tricone
Blade Width 6mm
Material Tungsten Carbide
Shank Type Hex
Number of Blades 3
Cutting Structure Milled Tooth
Rotary Rock Bit Yes


Applications:

Tricone Drilling Bit is a rotary rock bit, which is suitable for drilling oil and gas wells and oil wells. It has a 90 degree blade angle and a hex shank type, with an API Reg thread type. Its size is 3 7/8, and it has a milled tooth cutting structure. Moreover, it has a Place of Origin of Hebei, China, and is certified ISO9001. The price is negotiable, and the packaging details can be customized according to customer needs. Delivery time is 15-30 work days, and payment terms are TT.

Tricone Drilling Bit is designed for drilling large-diameter holes in all types of rocks, providing high-efficiency drilling performance in oil and gas drilling, well drilling, and other drilling operations. It features high-quality cutting structure and superior wear-resistance, which can effectively reduce the drilling cost and improve drilling efficiency. In addition, its high-strength body and long-lasting bearing can ensure a reliable and safe operation for maximum productivity.



Bit Size Connection Making Up Torque Weight Bit Size Connection Making Up Torque Weight
Inch mm Inch KN.m Kg Inch mm Inch KN.m Kg
3 1/2 95.3 2 3/8 4.1~4.7 5 11 279.4 6 5/8 38~43.4 85
4 5/8 117.5 2 7/8 6.1~7.5 6.5 11 5/8 295.3     89
4 3/4 120.7     7 12 1/8 304.8     94
5 1/2 139 2/3 3 1/2 9.5~12.2 17 12 1/4 311.2     95
5 7/8 142.9     18 12 15/32 315.9     97
6 152.4     19.5 13 1/8 333.4     120
6 1/4 158.8     19.5 13 5/8 346.1     120
6 1/2 165.1     19.5 13 3/4 349.3     120
6 3/4 171.5     21 14 5/8 368.3 7 5/8 46.1~54.2 160
7 1/2 190.5 4 1/2 16.3~21.7 28 14 3/4 374.7     160
7 7/8 200     29.5 15 381     185
8 1/4 209.6     38 15 1/2 393.7     189
8 3/8 212.7     38 16 406.4     205
8 1/2 215.9     38 17 1/2 444.5     255
8 3/4 222.3     40 20 508.0     443
9 1/2 241.3 6 5/8 38~43.4 57.5 22 558.8     580
9 7/8 250.8     60 24 609.6     650
10 5/8 269.9     74 26 660.4     810





Three Blades 2.5mm Thickness Tricone Roller Bit Milled Tooth 0

Packing and Shipping:

Packaging and Shipping for Tricone Drilling Bit:

Tricone Drilling Bits are packed in a wooden box that is lined with a cushioning material. Each box is labeled with the product information, including the weight and size. The boxes are then sealed with a plastic wrap.

Tricone Drilling Bits are shipped via air freight or sea freight depending on the destination and the customer's preference. The freight charges are calculated based on the size and weight of the package.



用于非开挖钻井项目1的HDD钻机凹槽背铰刀
用于非开挖钻井项目2的HDD钻机凹槽背铰刀
用于非开挖钻井项目3的HDD钻机凹槽背铰刀
用于非开挖钻井项目4的HDD钻机凹槽背铰刀
用于非开挖钻井项目5的HDD钻机凹槽背铰刀

FAQ:

Q1: What is the Tricone Drilling Bit?
A1: Tricone Drilling Bit is a kind of drilling tool used to drill the wellbore.
Q2: Where is the Place of Origin of Tricone Drilling Bit?
A2: Place of Origin of Tricone Drilling Bit is Hebei, China.
Q3: What is the Certification of Tricone Drilling Bit?
A3: Certification of Tricone Drilling Bit is ISO9001.
Q4: What is the Price of Tricone Drilling Bit?
A4: Price of Tricone Drilling Bit is Negotiable.
Q5: What is the Delivery Time of Tricone Drilling Bit?
A5: Delivery Time of Tricone Drilling Bit is 15-30 work days.
