Tricone Roller Bit
>
|
| Place of Origin | Hebei,China |
| Certification | ISO9001 |

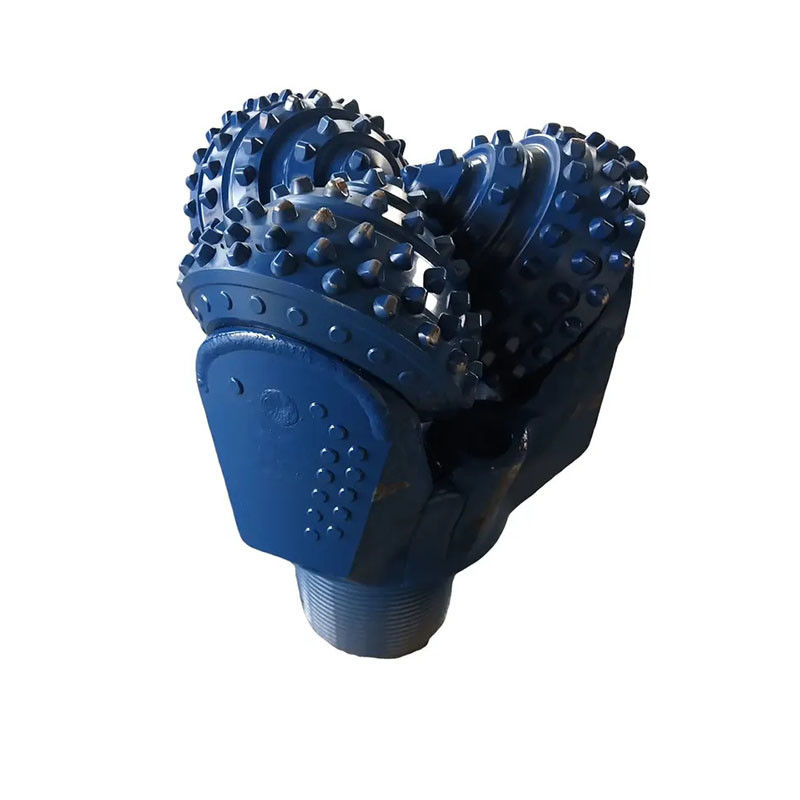

Rotary Rock Bit 3 7/8" 90° Cone Cutting Edge
Tricone Drilling Bit is a kind of tungsten carbide bit, which is made of high-quality tungsten carbide material. It has a 6mm wide blade, a hex shank, a tricone shape and an API Reg thread type. The blade angle is 90°. It is the perfect choice for drilling various formations and hard rocks. With its superior cutting structure, it can provide a fast cutting speed and a long service life. This roller cone bit is designed to provide maximum performance and efficiency for drilling operations. It is the ideal choice for drilling contractors and operators who need a reliable and cost-effective solution.
| Attribute | Value |
|---|---|
| Material | Carbide |
| Blade Height | 8mm |
| Blade Width | 6mm |
| Blade Angle | 90° |
| Thread Type | API Reg |
| Weight | 2.5kg |
| Shape | Tricone |
| Teeth | 3 |
| Cutting Structure | Milled Tooth |
| Blade Thickness | 2.5mm |
| Type | Tungsten Carbide Bit, Roller Cone Bit, Tricone Rock Bit |
Tricone Drilling Bit is a type of rotary rock bit that is made with tungsten carbide teeth. It is a great tool for drilling and reaming operations in various geological formations. The cutting edge is made up of three cones that are designed to provide maximum efficiency in the drilling process. It is available in a variety of sizes, including 3 7/8 inches, and has an impressive weight of 2.5 kgs. It is also equipped with hex shanks and three teeth for superior performance and durability.
Tricone Drilling Bit is a reliable and cost-effective solution for all drilling and reaming operations. It is certified to meet ISO9001 standards, and its place of origin is Hebei, China. Moreover, its price is negotiable and its packaging can be customized according to customer needs. The delivery time for this product is typically 15 to 30 work days, and payment terms are TT.
Tricone Drilling Bit is a versatile and reliable tool that is suitable for a wide variety of applications, including drilling for oil, natural gas, and water, as well as mining, construction, and geological exploration. It is designed to provide maximum efficiency and durability, making it a great choice for any drilling and reaming operation.
| Bit Size | Connection | Making Up Torque | Weight | Bit Size | Connection | Making Up Torque | Weight | ||
| Inch | mm | Inch | KN.m | Kg | Inch | mm | Inch | KN.m | Kg |
| 3 1/2 | 95.3 | 2 3/8 | 4.1~4.7 | 5 | 11 | 279.4 | 6 5/8 | 38~43.4 | 85 |
| 4 5/8 | 117.5 | 2 7/8 | 6.1~7.5 | 6.5 | 11 5/8 | 295.3 | 89 | ||
| 4 3/4 | 120.7 | 7 | 12 1/8 | 304.8 | 94 | ||||
| 5 1/2 | 139 2/3 | 3 1/2 | 9.5~12.2 | 17 | 12 1/4 | 311.2 | 95 | ||
| 5 7/8 | 142.9 | 18 | 12 15/32 | 315.9 | 97 | ||||
| 6 | 152.4 | 19.5 | 13 1/8 | 333.4 | 120 | ||||
| 6 1/4 | 158.8 | 19.5 | 13 5/8 | 346.1 | 120 | ||||
| 6 1/2 | 165.1 | 19.5 | 13 3/4 | 349.3 | 120 | ||||
| 6 3/4 | 171.5 | 21 | 14 5/8 | 368.3 | 7 5/8 | 46.1~54.2 | 160 | ||
| 7 1/2 | 190.5 | 4 1/2 | 16.3~21.7 | 28 | 14 3/4 | 374.7 | 160 | ||
| 7 7/8 | 200 | 29.5 | 15 | 381 | 185 | ||||
| 8 1/4 | 209.6 | 38 | 15 1/2 | 393.7 | 189 | ||||
| 8 3/8 | 212.7 | 38 | 16 | 406.4 | 205 | ||||
| 8 1/2 | 215.9 | 38 | 17 1/2 | 444.5 | 255 | ||||
| 8 3/4 | 222.3 | 40 | 20 | 508.0 | 443 | ||||
| 9 1/2 | 241.3 | 6 5/8 | 38~43.4 | 57.5 | 22 | 558.8 | 580 | ||
| 9 7/8 | 250.8 | 60 | 24 | 609.6 | 650 | ||||
| 10 5/8 | 269.9 | 74 | 26 | 660.4 | 810 | ||||
Q1: Where did this Tricone Drilling Bit come from?
A1: This Tricone Drilling Bit comes from Hebei,China and is certified by ISO9001.
Q2: How much does this Tricone Drilling Bit cost?
A2: The price is negotiable.
Q3: How is the Tricone Drilling Bit packaged?
A3: Packaging will be according to customer needs.
Q4: How long will it take to receive the Tricone Drilling Bit?
A4: The delivery time is 15-30 work days.
Q5: What payment terms are available?
A5: TT payment terms are available.
