Tricone Roller Bit
>
|
| Place of Origin | Hebei,China |
| Certification | ISO9001 |

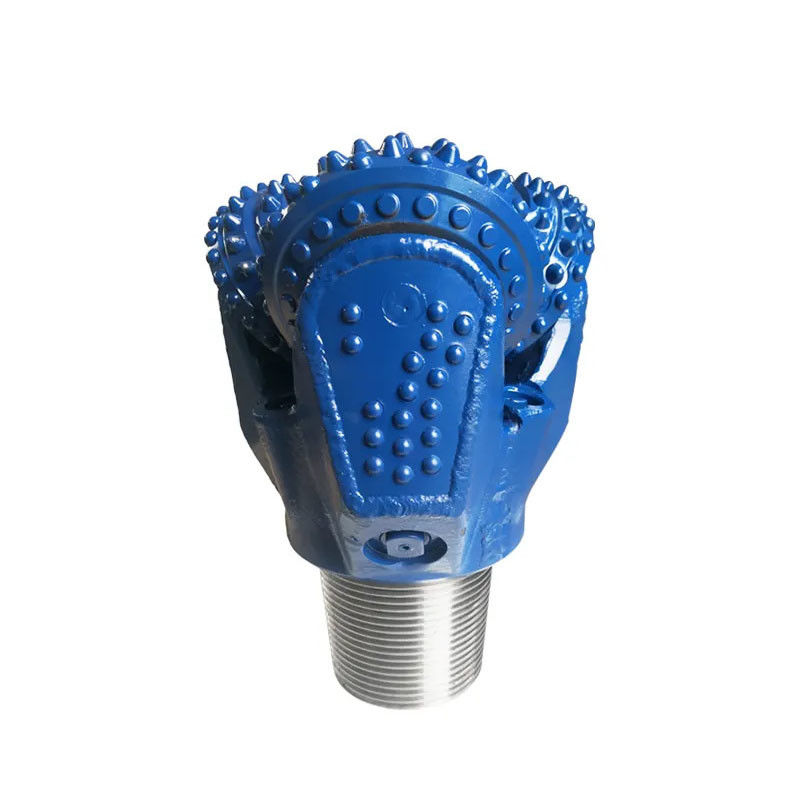

6mm Tricone Rotary Rock Bit for Heavy-Duty Drilling Projects
Tricone Drilling Bit is a rotary rock bit, also known as a roller cone bit, which is designed to bore through rock and hard ground. It features a pin connection, three cones with 90° blade angles and API Reg thread type, and it is available in size 3 7/8. The three cones are made of steel and are equipped with cutting edges, which are designed for maximum cutting efficiency. The tricone bit is designed to provide maximum drilling performance and reliability, and it is suitable for a wide range of applications including oil and gas drilling, geothermal drilling, and water well drilling. The tricone bits are highly durable and long lasting, making them an ideal choice for any drilling project.
| Parameter | Value |
|---|---|
| Size | 3 7/8 |
| Cutting Edge | Cone |
| Weight | 2.5kg |
| Cutting Structure | Milled Tooth |
| Blade Angle | 90° |
| Thread Type | API Reg |
| Blade Thickness | 2.5mm |
| Blade Width | 6mm |
| Material | Tungsten Carbide Bit |
| Teeth | 3 |
Tricone Rock Bit is widely used in various oilfield applications. The high-quality Tricone Rock Bit is made of premium materials, including carbide and API Reg thread type, and features 3 milled tooth cutting structures and a hex shank type. With ISO9001 certification, this product is of superior quality and is manufactured to meet customer requirements. The price is negotiable and the packaging details can be customized. The delivery time is usually within 15-30 work days, and payment terms are via TT. With reliable performance, Tricone Rock Bit has been widely recognized in oilfield drilling operations.
| Bit Size | Connection | Making Up Torque | Weight | Bit Size | Connection | Making Up Torque | Weight | ||
| Inch | mm | Inch | KN.m | Kg | Inch | mm | Inch | KN.m | Kg |
| 3 1/2 | 95.3 | 2 3/8 | 4.1~4.7 | 5 | 11 | 279.4 | 6 5/8 | 38~43.4 | 85 |
| 4 5/8 | 117.5 | 2 7/8 | 6.1~7.5 | 6.5 | 11 5/8 | 295.3 | 89 | ||
| 4 3/4 | 120.7 | 7 | 12 1/8 | 304.8 | 94 | ||||
| 5 1/2 | 139 2/3 | 3 1/2 | 9.5~12.2 | 17 | 12 1/4 | 311.2 | 95 | ||
| 5 7/8 | 142.9 | 18 | 12 15/32 | 315.9 | 97 | ||||
| 6 | 152.4 | 19.5 | 13 1/8 | 333.4 | 120 | ||||
| 6 1/4 | 158.8 | 19.5 | 13 5/8 | 346.1 | 120 | ||||
| 6 1/2 | 165.1 | 19.5 | 13 3/4 | 349.3 | 120 | ||||
| 6 3/4 | 171.5 | 21 | 14 5/8 | 368.3 | 7 5/8 | 46.1~54.2 | 160 | ||
| 7 1/2 | 190.5 | 4 1/2 | 16.3~21.7 | 28 | 14 3/4 | 374.7 | 160 | ||
| 7 7/8 | 200 | 29.5 | 15 | 381 | 185 | ||||
| 8 1/4 | 209.6 | 38 | 15 1/2 | 393.7 | 189 | ||||
| 8 3/8 | 212.7 | 38 | 16 | 406.4 | 205 | ||||
| 8 1/2 | 215.9 | 38 | 17 1/2 | 444.5 | 255 | ||||
| 8 3/4 | 222.3 | 40 | 20 | 508.0 | 443 | ||||
| 9 1/2 | 241.3 | 6 5/8 | 38~43.4 | 57.5 | 22 | 558.8 | 580 | ||
| 9 7/8 | 250.8 | 60 | 24 | 609.6 | 650 | ||||
| 10 5/8 | 269.9 | 74 | 26 | 660.4 | 810 | ||||
We specialize in providing customized Tricone Drilling Bits. Our Tricone Drilling Bits are made of high-quality tungsten carbide and are designed with a rotary rock bit structure. The cutting edge is cone-shaped and the teeth are milled to ensure maximum efficiency and performance. The connection is pin-shaped, weight is 2.5kg and teeth number is 3.
Place of Origin: Hebei,China
Certification: ISO9001
Price: Negotiable
Packaging Details: According to customer needs
Delivery Time: 15-30 work days
Payment Terms: TT
A1: Tricone Drilling Bit is from Hebei,China.
A2: Tricone Drilling Bit is certified by ISO 9001.
A3: The price of Tricone Drilling Bit is negotiable.
A4: The packaging of Tricone Drilling Bit is according to customer needs.
A5: The delivery time of Tricone Drilling Bit is 15-30 work days.
