Tricone Roller Bit
>
|
| Place of Origin | Hebei,China |
| Certification | ISO9001 |

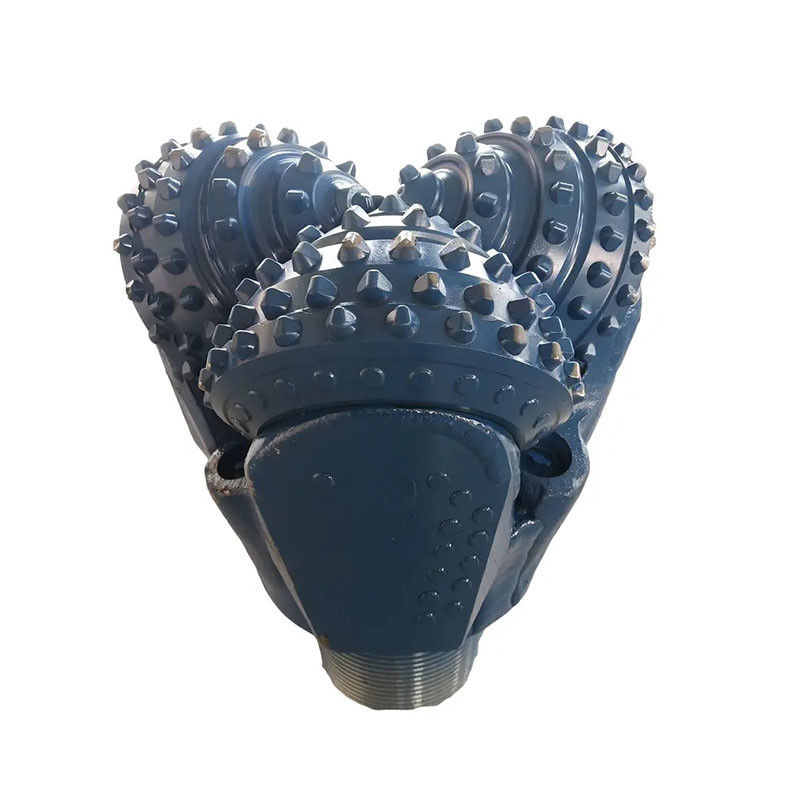

A Tricone Rock Bit is a cutting tool specifically designed for drilling through hard-rock formations. It is composed of a steel body with 3 conical blades or cones that are tipped with tungsten carbide teeth or bits. The tungsten carbide bits are designed to make sharp, precise cuts into the rock that it is being drilled through. The blades on the tricone bit are arranged in a triangular pattern with a height of 8mm and a thickness of 2.5mm. Each blade holds three tungsten carbide bit tips in a milled tooth cutting structure, which is designed for precise, efficient cutting. The tricone bit has a total weight of 2.5kg and is a reliable and durable tool for drilling hard-rock formations.
| Attribute | Value |
|---|---|
| Rotary Rock Bit | Tricone Rock Bit |
| Tungsten Carbide Bit | Yes |
| Blade Thickness | 2.5mm |
| Shape | Tricone |
| Blade Width | 6mm |
| Cutting Edge | Cone |
| Blade Height | 8mm |
| Number of Blades | 3 |
| Blade Angle | 90° |
| Shank Type | Hex |
| Thread Type | API Reg |
| Teeth | 3 |
| Bit Size | Connection | Making Up Torque | Weight | Bit Size | Connection | Making Up Torque | Weight | ||
| Inch | mm | Inch | KN.m | Kg | Inch | mm | Inch | KN.m | Kg |
| 3 1/2 | 95.3 | 2 3/8 | 4.1~4.7 | 5 | 11 | 279.4 | 6 5/8 | 38~43.4 | 85 |
| 4 5/8 | 117.5 | 2 7/8 | 6.1~7.5 | 6.5 | 11 5/8 | 295.3 | 89 | ||
| 4 3/4 | 120.7 | 7 | 12 1/8 | 304.8 | 94 | ||||
| 5 1/2 | 139 2/3 | 3 1/2 | 9.5~12.2 | 17 | 12 1/4 | 311.2 | 95 | ||
| 5 7/8 | 142.9 | 18 | 12 15/32 | 315.9 | 97 | ||||
| 6 | 152.4 | 19.5 | 13 1/8 | 333.4 | 120 | ||||
| 6 1/4 | 158.8 | 19.5 | 13 5/8 | 346.1 | 120 | ||||
| 6 1/2 | 165.1 | 19.5 | 13 3/4 | 349.3 | 120 | ||||
| 6 3/4 | 171.5 | 21 | 14 5/8 | 368.3 | 7 5/8 | 46.1~54.2 | 160 | ||
| 7 1/2 | 190.5 | 4 1/2 | 16.3~21.7 | 28 | 14 3/4 | 374.7 | 160 | ||
| 7 7/8 | 200 | 29.5 | 15 | 381 | 185 | ||||
| 8 1/4 | 209.6 | 38 | 15 1/2 | 393.7 | 189 | ||||
| 8 3/8 | 212.7 | 38 | 16 | 406.4 | 205 | ||||
| 8 1/2 | 215.9 | 38 | 17 1/2 | 444.5 | 255 | ||||
| 8 3/4 | 222.3 | 40 | 20 | 508.0 | 443 | ||||
| 9 1/2 | 241.3 | 6 5/8 | 38~43.4 | 57.5 | 22 | 558.8 | 580 | ||
| 9 7/8 | 250.8 | 60 | 24 | 609.6 | 650 | ||||
| 10 5/8 | 269.9 | 74 | 26 | 660.4 | 810 | ||||
A: A Tricone Drilling Bit is a type of rotary drill bit used to drill into hard and medium hard rock formations.
A: The Tricone Drilling Bit is manufactured in Hebei, China and certified according to ISO9001 standards.
A: The price of the Tricone Drilling Bit is negotiable.
A: The packaging of the Tricone Drilling Bit can be tailored to the customer's needs.
A: The delivery time for the Tricone Drilling Bit is 15-30 work days. Payment can be made via TT.
