Tricone Roller Bit
>
|
| Place of Origin | Hebei,China |
| Certification | ISO9001 |

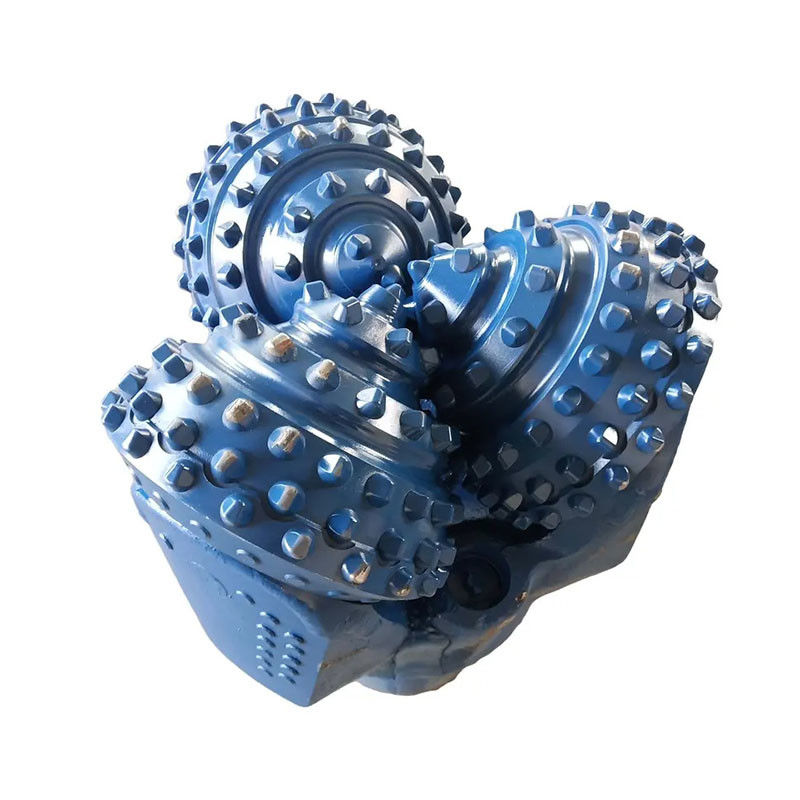

3 Teeth Milled Tooth Tricone Drilling Bit for B2B Buyers
Tricone Rock Bit is a rotary rock bit designed for drilling in oil, gas, and water wells. It is made of high-grade carbide material, with an API Reg thread type connection and a pin connection. Its blades are 8mm in height and 6mm in width, making it ideal for drilling hard and soft formations. It has a long service life and is able to perform in extreme conditions. It is highly efficient and cost-effective, making it one of the most popular rotary rock bits in the market. With its superior performance, it is the best choice for drilling applications.
| Parameter | Value |
|---|---|
| Type | Tricone Roller Cone Bit |
| Shank Type | Hex |
| Connection | Pin |
| Material | Tungsten Carbide |
| Blade Thickness | 2.5mm |
| Cutting Structure | Milled Tooth |
| Blade Width | 6mm |
| Thread Type | API Reg |
| Cutting Edge | Cone |
| Blade Height | 8mm |
| Blade Angle | 90° |
Tricone Drilling Bit is a kind of rotary rock bit, which is mainly composed of a steel body and tungsten carbide inserts. It is widely used in oil and gas drilling applications. With a pin connection, it is available in various sizes from 3 7/8” to 17 1/2”, and thread types from API Reg to Numa Reg. It is made of high-quality tungsten carbide, which allows it to drill through rocks with ease and quickly. It is usually used in hard rock formations, and the carbide inserts ensure the quality of the drilling.
This Tricone Drilling Bit is made in Hebei, China, and it has obtained ISO9001 certification. The price is negotiable according to customer needs. Packaging details can also be customized. Within 15-30 work days, the delivery time can be guaranteed. Payment terms are usually TT. The cutting edge is cone-shaped, and the material is carbide.
Tricone Rock Bit is a great choice for drilling in various formations, such as shale, limestone, sandstone, coal, and other soft and hard rocks. It is wear-resistant and high-performance, and is designed to provide smooth and efficient drilling. With its superior performance, it can help you reduce drilling costs significantly and maximize drilling efficiency.
| Bit Size | Connection | Making Up Torque | Weight | Bit Size | Connection | Making Up Torque | Weight | ||
| Inch | mm | Inch | KN.m | Kg | Inch | mm | Inch | KN.m | Kg |
| 3 1/2 | 95.3 | 2 3/8 | 4.1~4.7 | 5 | 11 | 279.4 | 6 5/8 | 38~43.4 | 85 |
| 4 5/8 | 117.5 | 2 7/8 | 6.1~7.5 | 6.5 | 11 5/8 | 295.3 | 89 | ||
| 4 3/4 | 120.7 | 7 | 12 1/8 | 304.8 | 94 | ||||
| 5 1/2 | 139 2/3 | 3 1/2 | 9.5~12.2 | 17 | 12 1/4 | 311.2 | 95 | ||
| 5 7/8 | 142.9 | 18 | 12 15/32 | 315.9 | 97 | ||||
| 6 | 152.4 | 19.5 | 13 1/8 | 333.4 | 120 | ||||
| 6 1/4 | 158.8 | 19.5 | 13 5/8 | 346.1 | 120 | ||||
| 6 1/2 | 165.1 | 19.5 | 13 3/4 | 349.3 | 120 | ||||
| 6 3/4 | 171.5 | 21 | 14 5/8 | 368.3 | 7 5/8 | 46.1~54.2 | 160 | ||
| 7 1/2 | 190.5 | 4 1/2 | 16.3~21.7 | 28 | 14 3/4 | 374.7 | 160 | ||
| 7 7/8 | 200 | 29.5 | 15 | 381 | 185 | ||||
| 8 1/4 | 209.6 | 38 | 15 1/2 | 393.7 | 189 | ||||
| 8 3/8 | 212.7 | 38 | 16 | 406.4 | 205 | ||||
| 8 1/2 | 215.9 | 38 | 17 1/2 | 444.5 | 255 | ||||
| 8 3/4 | 222.3 | 40 | 20 | 508.0 | 443 | ||||
| 9 1/2 | 241.3 | 6 5/8 | 38~43.4 | 57.5 | 22 | 558.8 | 580 | ||
| 9 7/8 | 250.8 | 60 | 24 | 609.6 | 650 | ||||
| 10 5/8 | 269.9 | 74 | 26 | 660.4 | 810 | ||||
We are providing our customers with the best quality Tricone Rock Bit. This product is made of high-quality Carbide and has a Milled Tooth cutting structure. It has a cutting edge of Cone shape and a blade angle of 90°. It is ISO9001 certified and the weight of this product is 2.5kg. Our product is available at a negotiable price. The delivery time of this product is 15-30 work days and we accept TT as the payment terms. The packaging of the product is according to the customer's needs.
